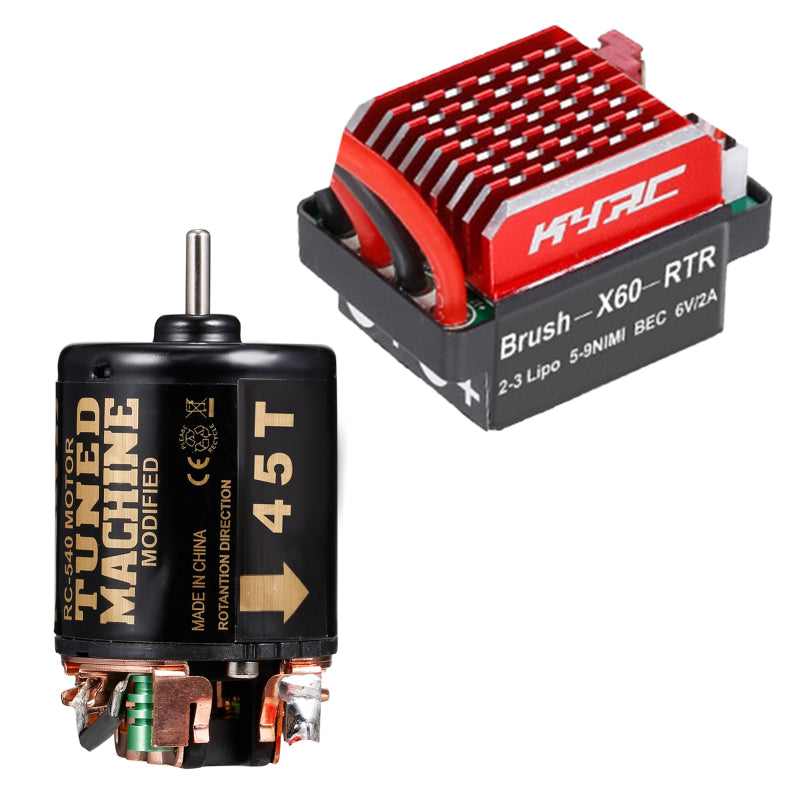

540 Brushed Motor RC Crawler Motor 45T 3-Slot and 60A ESC RC Car ESC Brushed Electric Speed Controller 6V/2A BEC for 1/10 RC Car

Providing both quality and performance at an affordable price, the?540 brush motor with 3 slots,?with excellent throttle linearity and driving feel. The 60A brushed ESC perfectly fits for 1/10 RC Car. Built with the superior components features enhanced throttle response, excellent acceleration, b breaks, and throttle linearity, it is a good choice for RC hobbyists, especially for DIY enthusiasts.



Specifications:

Item:?540 Brushed Motor

Turns: 45T

Motor Type: Brush motor

Slot: 3 Slot

No-load Current: 1.4A

The Motor Supports up to 12V voltage. Recommended to Use 7.2-7.4V Batteries

Diameter: 36mm

Length: 50mm

Shaft Length: 15mm

Shaft Diameter: 3.175mm

Suitable for:?1/10 Crawler Cars



Item: 60A ESC

Item Model: Brush-X60

Type: Brushed

Plug: T Male plug

Forward: Persistent Current/Peak Current: 60A /360A

Reverse: Persistent Current/Peak current: 30A /180A

Voltage: 2-3S Lipo/5-9 cells NiMH Battery

BEC Output: 2A /6V (Linear Regulator Switch)

Supported motor:

2S Lipo /6cells NiMH: 540 /550 Motor(¡Ý12T or RPM less than 30000 @7.2V)

3S Lipo /9cells NiMH: 540 /550 Motor (¡Ý18T or RPM less than 20000 @7.2V)

Running Mode: Forward and Reverse/Crawler Mode

Application: 1/10 RC Car

Item Size (Exclude Cable): 4.3 * 2.8 * 2.6cm



Package Information:

Package Size: 12*8*4.5cm

Package Weight: 227g

Plastic Package



Packing List:

1* 540 Motor 45T

1* 60A ESC

1 * Introduction
