63A 220V Din Ray? Ayarlanabilir A??r? Gerilim ve D¨¹?¨¹k Gerilim Koruyucu Cihaz Koruyucu R?le A??r? Ak?m Korumas? Ev Kullan?m? ?ift LED Ekran

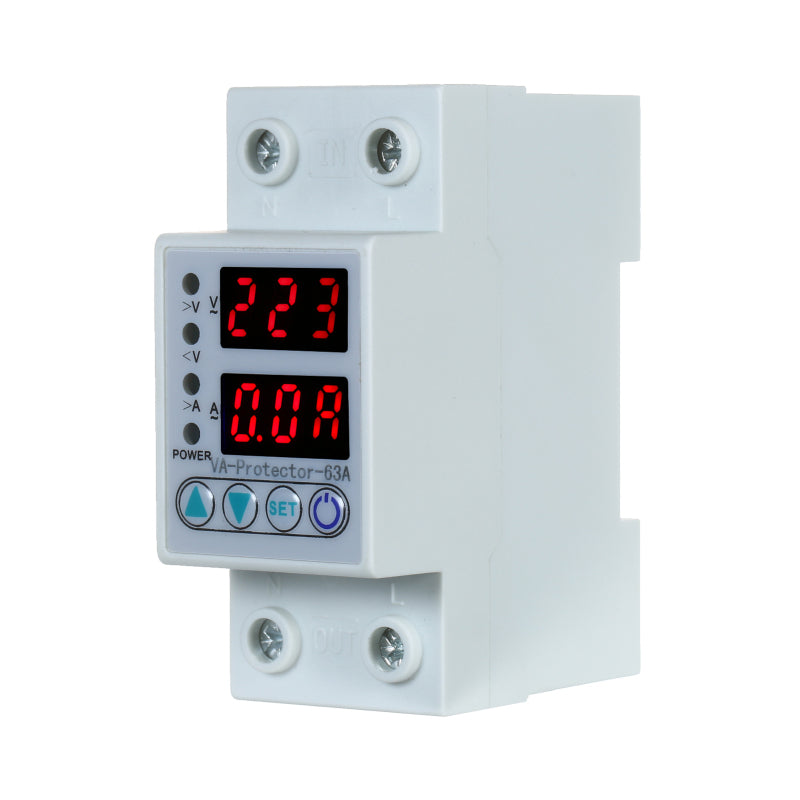

The double LED display adjustable voltage current protector is suitable for single-phase AC 220V, 50/60Hz, rated working current 63A.  It is mainly used for residential household box entry or over-voltage, under-voltage or over-current protection of distribution lines for single-phase electrical equipment. Its main feature is when the circuit has over-voltage or under-voltage, over-current problems, the product can cut off the power supply instantaneously to protect the electrical equipment from being damaged, besides,the protector can automatically turn on the power supply when the circuit voltage returns to the normal.  The over-voltage, under-voltage and over-current values of this product can all be set up by yourself and can be adjusted on the basis of local practical condition.



Specification:

Rated Supply Voltage: AC 220V

Operation Voltage Range: AC 80V-400V (Single Phase)

Rated Frequency: 50/60 Hz

Electric Current (>A)Setting Range: 1-63A

Over Voltage (>U) Setting Range:  230-300V

Under Voltage (<U) Setting Range:  140-210V

Error: 2

>U and <U Trip Delay: 0.5S

Reset / Start Delay: 1s-600s

Voltage Measurement Accuracy: 1%

Rated Insulation Voltage: 400V

Output Contact: 1NO

Electrical Life: 10^5

Mechanical Lift: 10^6

Protection Degree: IP20

Installation: Din Rail

Item Size: 85*65*37mm/3.35*2.56*1.46in



Packing List:

1 * Voltage and AMP Protector

1 * User Manual
