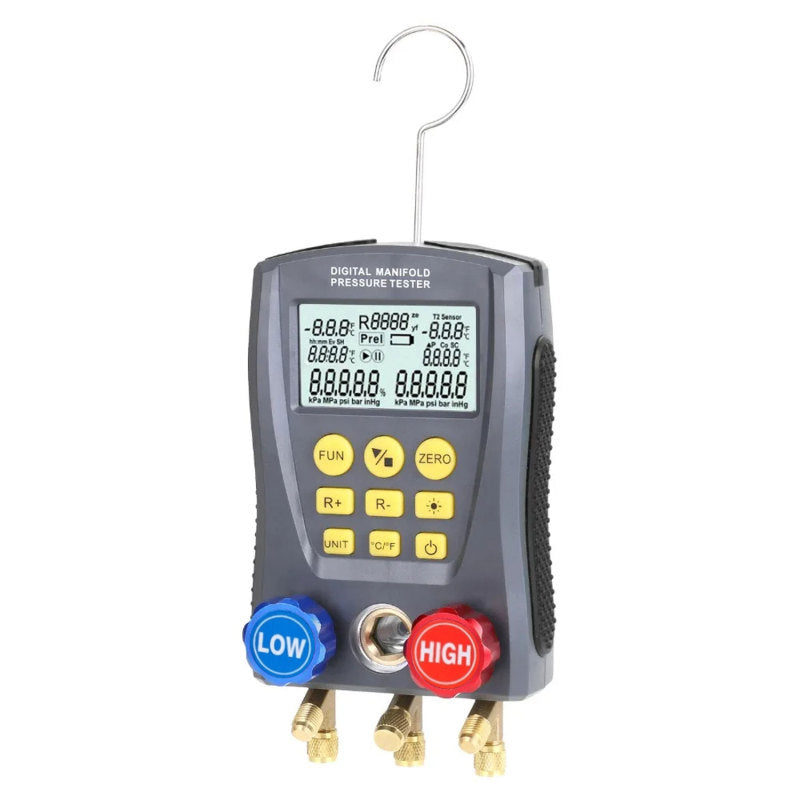

Basınç Göstergesi Soğutma Dijital Vakum Basınç Manifoldu Test Ölçer HVAC Sıcaklık Test Dijital Manifoldu Ölçer Ölçer HVAC Vakum Basıncı Doomun
Basınç Göstergesi Soğutma Dijital Vakum Basınç Manifoldu Test Ölçer HVAC Sıcaklık Test Dijital Manifoldu Ölçer Ölçer HVAC Vakum Basıncı Doomun
Regular price
390.24TL
Regular price
Sale price
390.24TL
Unit price
/
per
Couldn't load pickup availability
bar).
4) The maximum operating pressure of standard hose is 600 PSI ( approximate 4.13 Mpa, 41.3 bar ). The limit pressure is 3000 PSI approximate 20.68 Mpa, 206.8 bar ).
5) Please confirm the rated pressure value of the tested equipment before testing. Do not use it if it exceeds the rangeof the instrument.
6) Do not use and store the instrument in high temperature, high humidity, flammable, explosive and b electromagnetic fields.
7) Please do not change the instrument internal circuit, to avoids any damage of the instrument or danger occurring.
8) Please wear qualified protective equipment to protect user during testing.
9) Please use the instrument in a well-ventilated environment to prevents inhalation of toxic gases.
Specifications:
Pressure test: gauge pressure
Pressure test unit: Kpa; Mpa; bar; inHg; PSI.
Pressure test range: 0 Kpa – 6000 Kpa
Pressure test resolution: 1 Kpa
Pressure test accuracy: +/- 0.5 %(FS)+ 5dgt
Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)
Vacuum test: relative vacuum
Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.
Vacuum test range: -101 Kpa – 0 Kpa
Vacuum test resolution: 1 Kpa
Temperature test unit: °C (Celsius), °F (Fahrenheit)
Temperature test range: -40°C–150°C (-40°F–302°F)
Temperature test resolution:
0.1°C (-40°C–99.9°C), 1°C (100°C–150°C)
0.1°F (-40°F–99.9°F), 1°F (100°F–302°F)
Temperature test accuracy: +/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgt
Built-in 89 kinds of refrigerant NIST: According to AmericanNIST standard
Power Supplies: 4 X 1.5V (SIZE.AA / LR6) Battery not include
Size: 170 * 110 * 50mm / 6.7 * 4.3 * 2.0in
Package size: 200 * 150 * 80mm / 7.9 * 5.9 * 3.0in
Package weight: 950g / 2.09lb
Packing List:
1 * Refrigerantion Digital Manifold Gauge
1 * User manual (in English)
