CX4500 Mikrobilgisayar Punta Kaynak Makinesi Seti 20ms-1s Zaman Ayarlı 640-1600A 0.25mm l kaplı Çelik Levha için Akım Ayarı Doomun

/>


Using steps:

Firstly, check the electrode and welding-needle of the machine, and the two electrodes can not contact each other. (if contact accidentally, don't worry, it will not damage the machine)

Secondly, turn on the power switch, the power light will light up, and the machine will be entered into standby state, standby power consumption is 2W.

Then, after entering the power-on state, adjust the current and time parameters according to the thickness of the weldment. The current is generally adjust to 80-100, and time is generally adjust to 0-10.

The power situation is different in different regions, and the actual operation is generally adjusted from low to high, and welding firmly!

Finally, place the nickel sheet flat against the battery, press the two soldering pens on the nickel sheet, adjust the current and time, step on the foot pedal and the work light flashes to complete the welding!



Parameter analysis:

Current: refers to the size of the welding output power, the value is converted, the minimum output.

Time: refers to the length of the energization time during the welding process, numerical simulation, the longer the energization time.



Specifications:

Name: Spot Welding Machine Set

Material: metal

Model: CX4500

Plug: USA, E-U (optional)

Input voltage: AC100V/AC220V (optional)

Current adjusting-range: 640A-1600A

Time adjusting-range: 20ms-1s

Maximum power: 6.7KW

Maximum output voltage: 4.5V

Maximum output current: 1600A

Item size: 195 * 155 * 156mm / 7.68 * 6.10 * 6.14in

Item weight: 5111g / 11.27lb

Package size: 250 * 210 * 255mm / 9.84 * 8.27 * 10.04in

Package weight: 5452g / 12.02lb

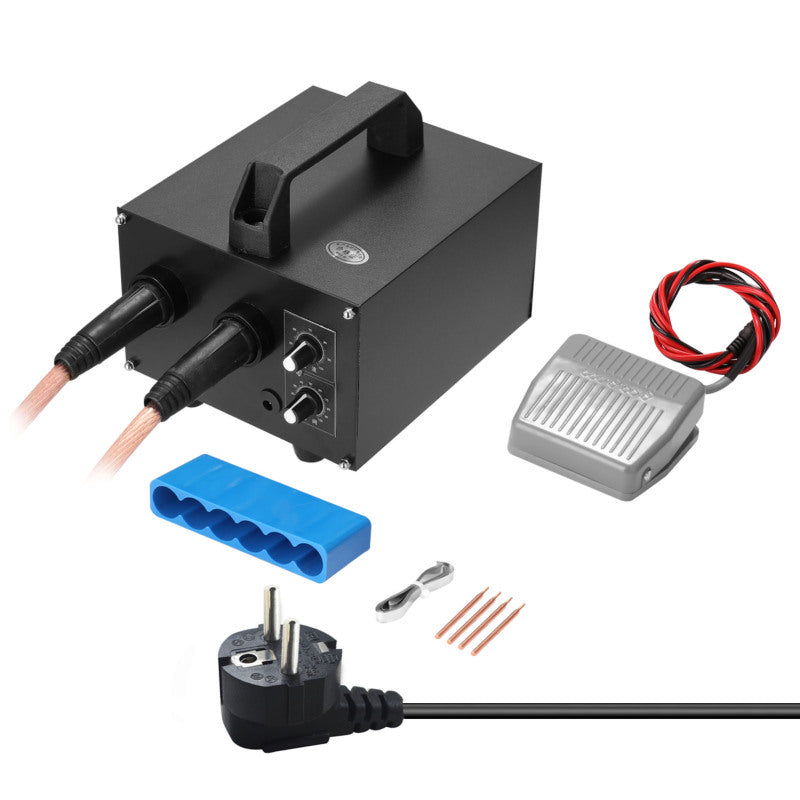

Packing List:

1 * Spot Welding Machine

1 * Pair of Welding Pen

1 * Pedal

1 * Battery Jig

1 * Nickel Sheet

4 * Welding N-eedles
