Dijital Ekran Pil Kapasitesi Dahili Direnç Test Cihazı Dijital Lityum Pil Güç Dedektörü Modülü 18650 Pil Test Ölçer Çift Tip-C Arayüzü

discharging cycles. 18650 battery holder uses compact battery holder for flathead battery measurement.



Note: does not support the charging of lithium iron phosphate batteries.



Specifications:

Operating voltage: 5VDC

Applicable battery: meet the stop discharge voltage 2.5 ~ 3.5V, 2.8V starts ~ 4.2V full battery are applicable

Power supplying interface: two Type-C interface

System language: English / Chinese switchable

Test quantity: 4-channel charging and discharging measurement

Internal resistance measurement: support, using the direct current two-wire method to test the internal resistance

Charging function: support, full automatic cut off charging (does not support charging of lithium iron phosphate batteries)

Discharge function: support, automatically stop when conditions are met, discharge current is not adjustable

Automatic charging and discharging: support, automatic mode ends when the battery is fully charged

Cycle charging and discharging: support, 1~9 cycles adjustable (only automatic mode support)

Status prompt: support

Heat dissipation mode: fan active heat dissipation

Overheat protection: Support

Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, a total of 11 grades adjustable

Discharge current: maximum about 1A current, not adjustable, does not support independent transformation

Charging voltage: special battery charging chip control, maximum of about 1A charging, full charging voltage 4.2V

Power failure save: only save the setting parameters, not save the measurement data

Item size: 150 * 103 * 36mm / 5.91 * 4.06 * 1.42in

Item weight: 200g / 7.05ounce

Package size: 182 * 112 * 50mm / 7.07 * 4.41 * 1.97in

Package weight: 260g / 9.17ounce



Packing List:

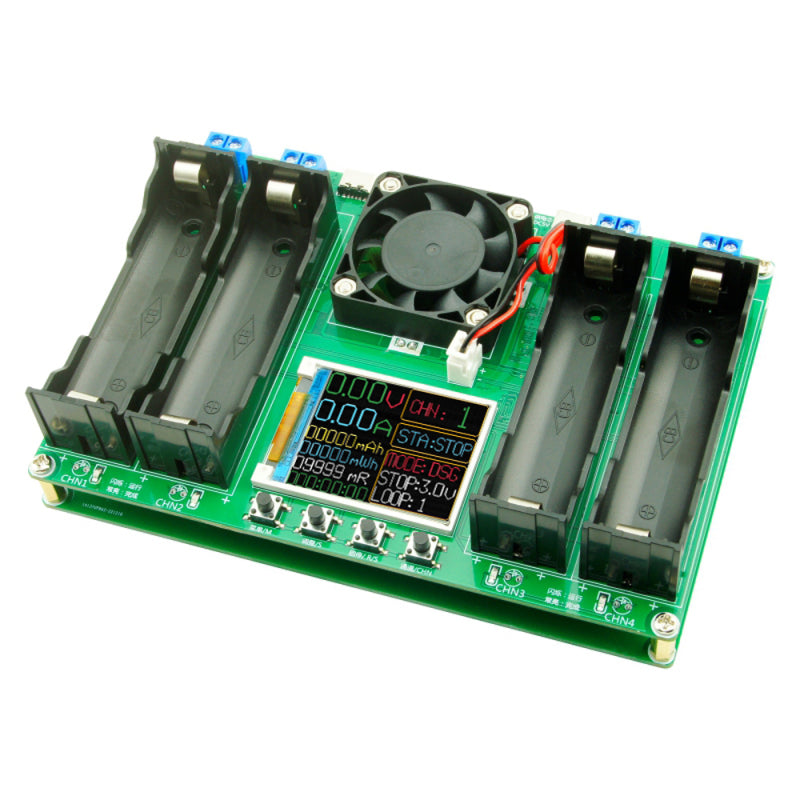

1 * 18650 Battery Capacity Internal Resistance Tester

1 * Pry Bar
