¨¹? Fazl? Gerilim ve Ak?m Koruyucu Senkron ve Asenkron ?al??ma Modlar? Tasar?m? Otomatik G¨¹? Kapatma ve Otomatik S?f?rlama Fonksiyonlu ?oklu Korumalar
¨¹? Fazl? Gerilim ve Ak?m Koruyucu Senkron ve Asenkron ?al??ma Modlar? Tasar?m? Otomatik G¨¹? Kapatma ve Otomatik S?f?rlama Fonksiyonlu ?oklu Korumalar
Regular price
262.39TL
Regular price
Sale price
262.39TL
Unit price
/
per
Couldn't load pickup availability
(SYN) and Asynchronous (ASY) mode for you to adjust, easy to satisfy with your needs.
Synchronous (SYN) Mode: Three phase relay open close at same time, can be used as three phase protector.
Asynchronous (ASY) Mode: Three phase relay work separately, can be used as three individual single phase protectors.
Multiple Protections Design: With over-voltage, under-voltage, over-current, short circuit, overload and wires protecting functions.
Multifunctional Design: With voltage balance, reset time adjustable and action time adjustable function.
Automatic Power Off: It can cut off the power supplies instantaneously when the line has overvoltage or undervoltage overcurrent faulty, so as to protects the electrical equipment from being damaged. Overload automatic power off, normal power supplys within specified power.
Automatic Reset: When it is ASY mode, no phase sequence and voltage unbalance protect, it will automatic reset to prevents power failure for a long time and quick response to prevents the trouble caused by overvoltage and undervoltage.
Specifications:

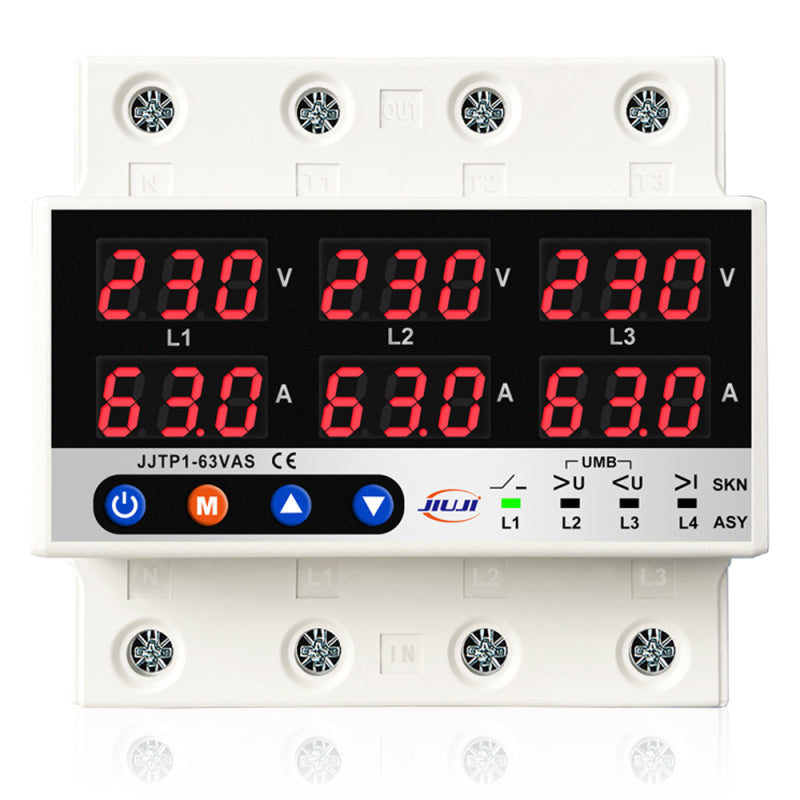

Name: Voltage and Current Protector
Material: plastics
Type: 63A, 100A (optional)
Power on delay time: 1s-500s
Overvoltage protecting ranges: 230V-300V
Undervoltage protecting ranges: 140V-210V
Under-voltage recovery value: 145V-215V
Three phase voltage unbalance value: 20V-99V
Three phase voltage unbalance recovery value: 15V-94V
Over-current protecting value: 3A-63A-OFF, 3A-100A-OFF (according to your selection)
Item size:
63A: 90 * 66 * 90mm / 3.54 * 2.59 * 3.94in
100A: 90 * 66 * 101mm / 3.54 * 2.59 * 3.97in
Package size: 130 * 110 * 80mm / 5.12 * 4.33 * 3.15in
Package weight:
63A: 400g / 0.88lb
100A: 500g / 1.10lb
Packing List:
1 * Voltage and Current Protector
Synchronous (SYN) Mode: Three phase relay open close at same time, can be used as three phase protector.
Asynchronous (ASY) Mode: Three phase relay work separately, can be used as three individual single phase protectors.
Multiple Protections Design: With over-voltage, under-voltage, over-current, short circuit, overload and wires protecting functions.
Multifunctional Design: With voltage balance, reset time adjustable and action time adjustable function.
Automatic Power Off: It can cut off the power supplies instantaneously when the line has overvoltage or undervoltage overcurrent faulty, so as to protects the electrical equipment from being damaged. Overload automatic power off, normal power supplys within specified power.
Automatic Reset: When it is ASY mode, no phase sequence and voltage unbalance protect, it will automatic reset to prevents power failure for a long time and quick response to prevents the trouble caused by overvoltage and undervoltage.
Specifications:
Name: Voltage and Current Protector
Material: plastics
Type: 63A, 100A (optional)
Power on delay time: 1s-500s
Overvoltage protecting ranges: 230V-300V
Undervoltage protecting ranges: 140V-210V
Under-voltage recovery value: 145V-215V
Three phase voltage unbalance value: 20V-99V
Three phase voltage unbalance recovery value: 15V-94V
Over-current protecting value: 3A-63A-OFF, 3A-100A-OFF (according to your selection)
Item size:
63A: 90 * 66 * 90mm / 3.54 * 2.59 * 3.94in
100A: 90 * 66 * 101mm / 3.54 * 2.59 * 3.97in
Package size: 130 * 110 * 80mm / 5.12 * 4.33 * 3.15in
Package weight:
63A: 400g / 0.88lb
100A: 500g / 1.10lb
Packing List:
1 * Voltage and Current Protector
