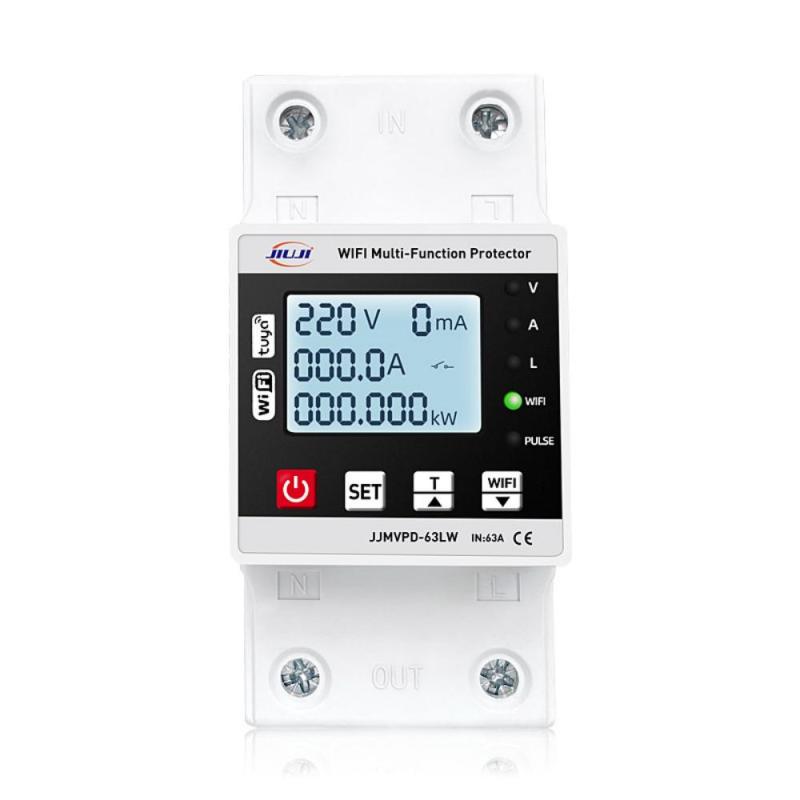

Tuya WiFi Intelligent Reclosing Protector Current Voltage Monitoring Circuit Breaker Switch Power Meter Protections Values Settable Mobilephone APP Control

Wiring: Large wiring port design, makes the wiring process quicker and easier.

Easy Installation: Compact size suitable for installation in the distribution box, or mounted on the wall. Din rail type snap installation, no screws required, buckle fixation.

Wide Applications: Suitable for a variety of occasions, such as rental houses, shopping malls, schools, factories, etc. Recommended for use with high-power products which are prone to leakage behavior, such as electric heaters, ovens, water heaters, refrigerators, air conditioners, etc.

Two Types Available: You can choose the common version and the Tuya Wifi version according to your demands. Tuya Wifi version has the mobilephone APP control function.



Tuya Wifi Version: Mobilephone Tuya APP controls the overvoltage, under-voltage, and current can be controlled through the APP and the data can be seen on the APP.



Specifications:

Name: Automatic Reclosing Protector

Material: plastics

Type: common version, Tuya Wifi version (optional)

Input voltage: AC140-300V

Over-voltage protecting value: 230-300V, default 270V

Under-voltage protecting value: 140-210V, default 170V

Over-current protecting value: 1-63A, default 40A

Leakage protecting value: 10-99mA, default 30mA

Electricity delay: 1-500S, default 10S

Over-voltage resume figure: 225-95V, default 265V

Under-voltage resume figure: 145-215V, default 175V

Over-current resume figure: 0.5-62.5A

Continues protecting times: 1-20 times, default off

Time delay value: 0.1-30s, default 1s

Own power -consumption: ≤2W

Electrical mechanical lifespan: ≥100,000 times

Item size: 96 * 45 * 68mm / 3.78 * 1.77 * 2.68in

Package size: 77 * 100 * 50mm / 3.03 * 3.94 * 1.97in

Package weight: 200g / 7.05ounce



Packing List:

1 * Automatic Reclosing Protector
