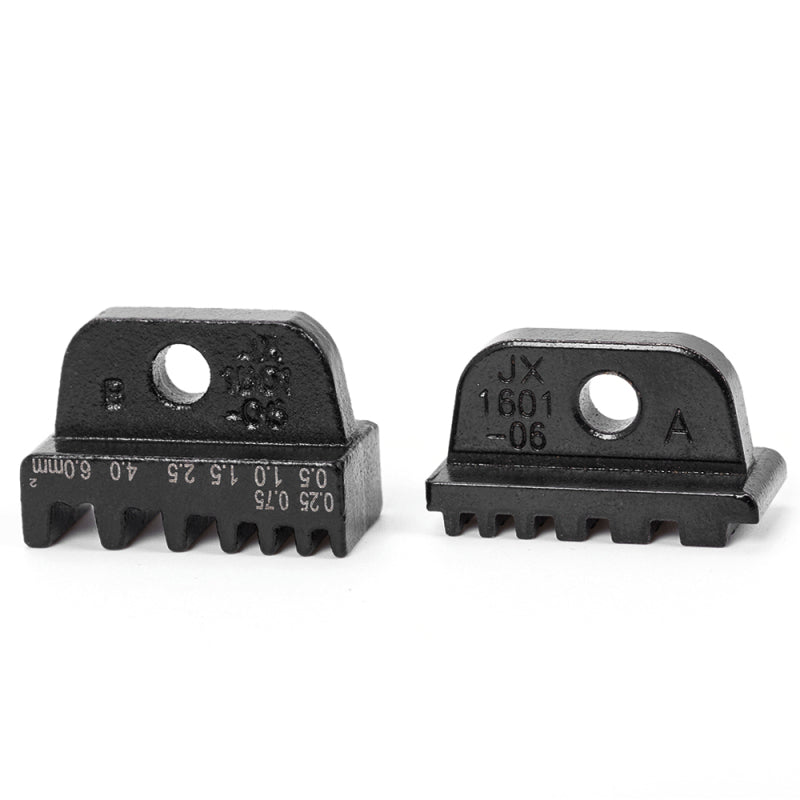

Wire Crimper Crimping Pliers Jaw JX-1601-06 AWG24-10 0.25-6mm2 Bootlace Ferrule Crimpers Cord End Terminal Jaws Mold for Dupont Terminal Clamp Plier Wire Cutting Mould Terminal Head Crimping Tool

Always find the other practical wire crimpers tool come with many kinds of jaw molds? You can try these Wire Crimper Jaws. They feature convenience, efficiency and harmlessness to the cable cores. It is easy to use with the function of pressure adjustment.



Specifications:

Material: Alloy Steel

Color: Silver (JX-1601-06 / JX-1601-08 / JX-1601-2546 / JX-1601-10) / Black(JX-1601-01)

Model: JX-1601-01 / JX-1601-06 / JX-1601-08 / JX-1601-2546 / JX-1601-10 (Optional)

Suitable Terminals & Crimping Range of Wire Crimper:

1. JX-1601-01: Color Code Nests + Insulated Terminals 24-14 AWG (0.25-2.5mm²)

2. JX-1601-06: Cord End Terminals 24-10 AWG (0.25-6.0mm²)

3. JX-1601-08: Non-insulated Open Barrel Connector 26-16 AWG (0.14-1.5mm²)

4. JX-1601-2546: MC4 Solar Connector Terminals 14-10 AWG (2.5-6.0mm²)

5. JX-1601-10: Non-insulated open barrel connector 28-18 AWG (0.1-1.0mm²)

Item Size: Approx. 30 * 25mm / 1.18 * 0.98in (L*W)

Max Thickness: JX-1601-01: 9mm/0.35", JX-1601-06: 12mm/0.47", JX-1601-08: 7mm/0.28", JX-1601-2546: 6mm/0.24", JX-1601-10: 7mm/0.28"

Min Thickness: 4mm/0.16"

Package Size: Approx. 3.1 * 2.6 * 1.3cm / 1.22 * 1.02 * 0.51in

Package Weight: JX-1601-01: Approx. 24g / 0.85oz, JX-1601-06: Approx. 29g / 1.01oz, JX-1601-08: Approx. 21g / 0.73oz, JX-1601-2546:

Approx. 20g / 0.71oz, JX-1601-10: Approx. 22g / 0.79oz



Note: Please notice the anastomosis direction of die and terminal when operation to avoid being burst open.



Package List:

1 * Wire Crimper Jaw
